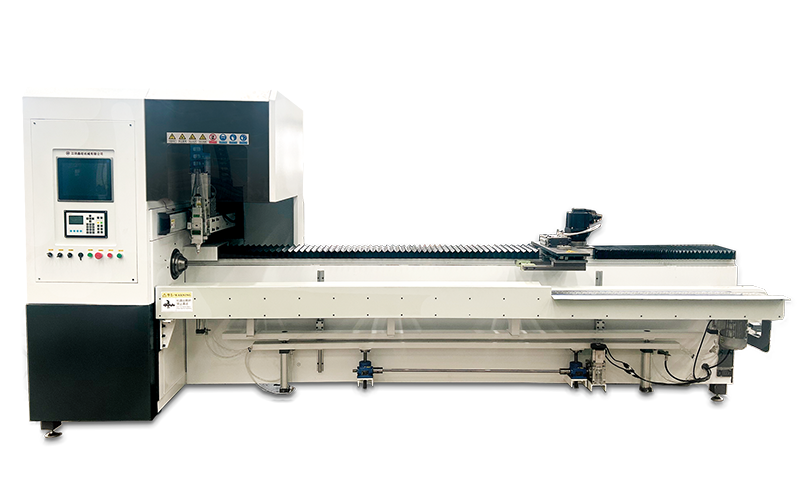

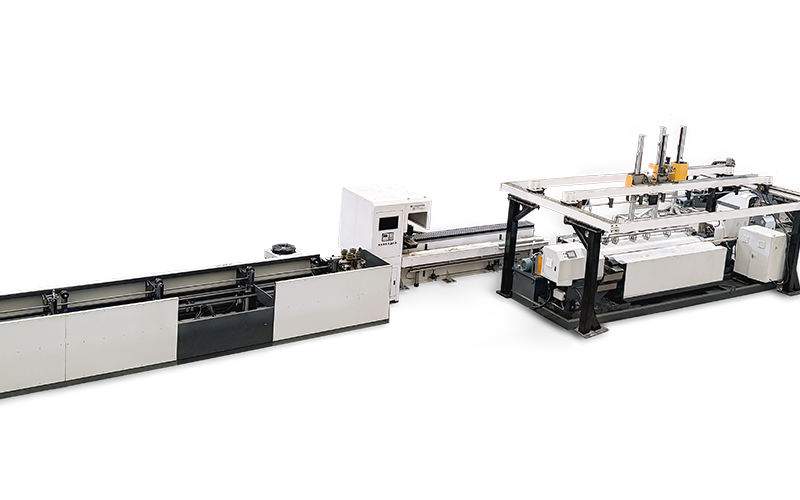

Automatic laser marking, cutting & threading line
Model:
Model:
| Model number | CNTS-50A |
| Overall dimensions(L*W*H) | 17000*7000*4000mm |
| Machined base tube specifications | DN25-DN50 |
| Equipment simultaneous power | 10KW+20KW |
| Processing efficiency | About 50 to 70 pieces per hour |
| Rotational speed | 0-120 rpm |
| Die Wear Resistance | One die set cuts 30,000-50,000 threads for carbon steel & galvanized pipes.For stainless steel,contact us for details. |
| Operating Requirements | Level solid floor,dust-free;3-phase power required; High-pressure unit;46#AW Hydraulic Oil |
| Die Opening/Closing Mode | Automatic Servo |
| Weight | Approx.10T |
| Warranty Service | 12-month full machine warranty |
ProductOverviewTheIntelligentThreadingMachinefromJiangyinXinWang MachineryCo.,Ltd.isacutting-edgesolutionforhigh-precisionthreadingapplications.DesignedwithadvancedPLCi
