| Processing scope: | Angle iron 30-50mm |
| Processing plate thickness: | 3-5mm |
| Feed speed of angle steel: | 15m/min |
| Length error: | ±1mm(2000mm) |
| Whole machine power: | 13KW |
| Hydraulic system pressure: | 8-13Mpa |
| Hydraulic oil: | 46# |
| Machine dimensions(L * W* H): | 2600mm*1300mm*1650mm |
| Maximum punching diameter (mm): | Φ 16 (5mm thick, Q235) |
| Machine weight: | 1000KG |

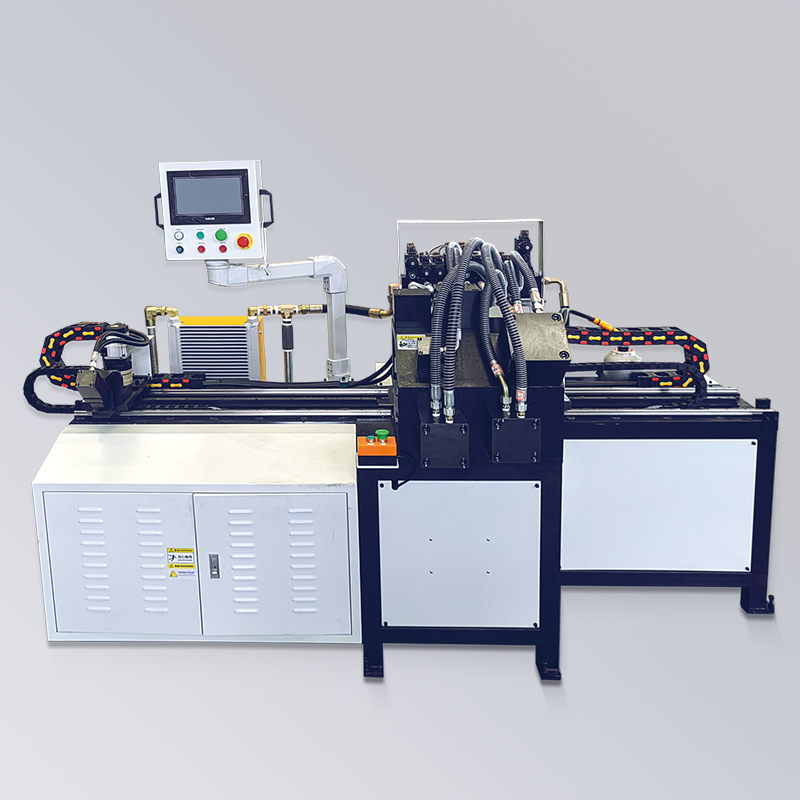

The CNC angle steel flange punching and cutting machine is a necessary machinery for producing air duct angle steel flanges.
Mainly used for angle steel punching and cutting of iron.
The fully automated production method and accurate numerical control greatly improve production efficiency,reduced labor costs and material losses.

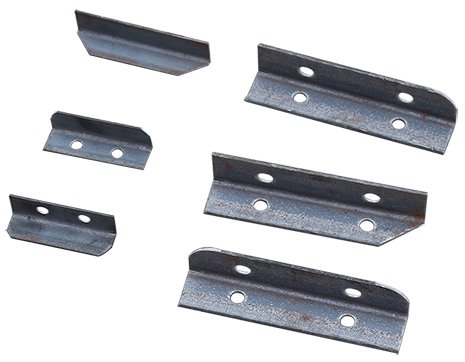

angle iron punching and cutting effect

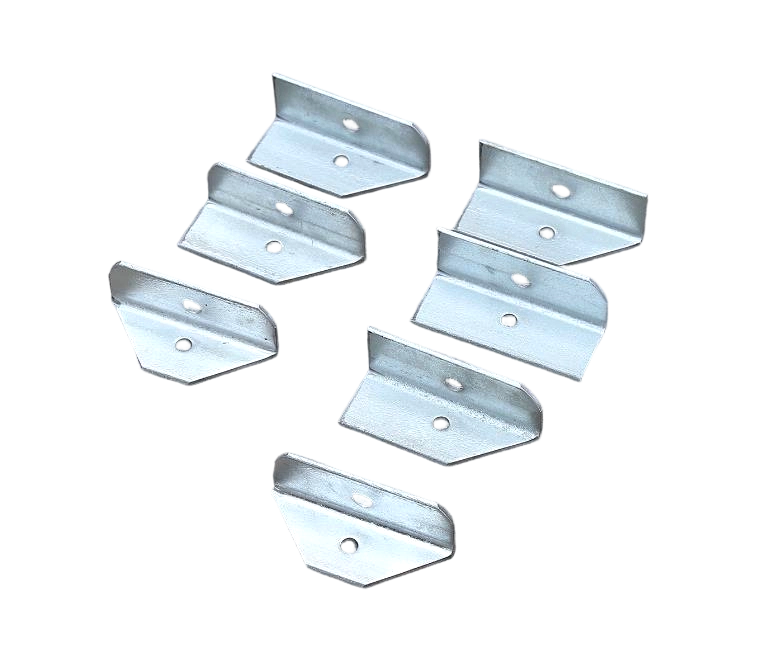

galvanized angle iron punching and cutting effect
Equipment OverviewThe CNC angle steel flange punching and cutting machine is a necessary machinery for producing air duct angle steel flanges.Mainly used for angle steel punching and cutting of iron.The fully automated production method and accurate numerical control greatly improve production effic
